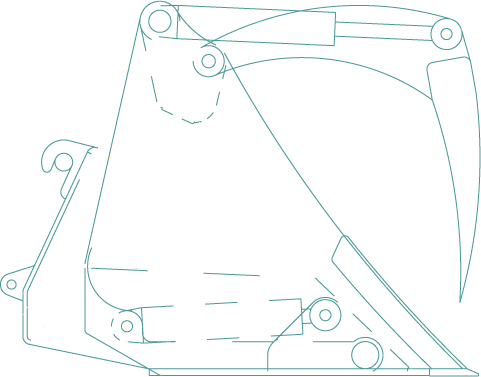

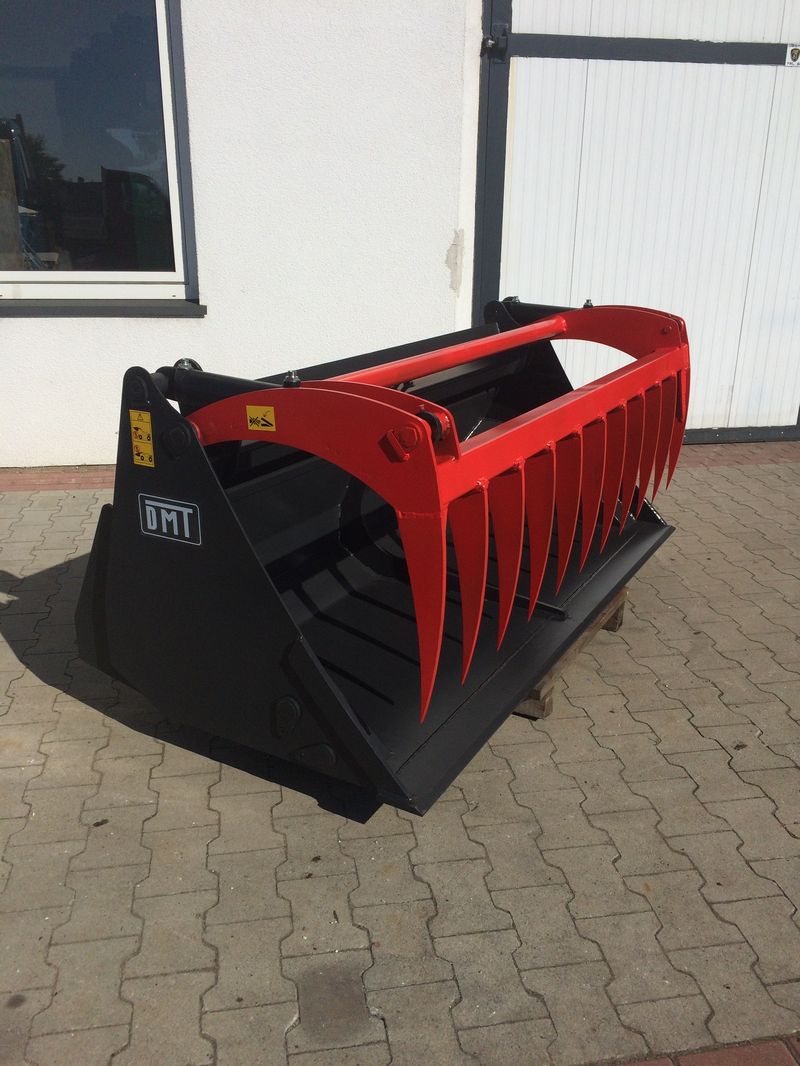

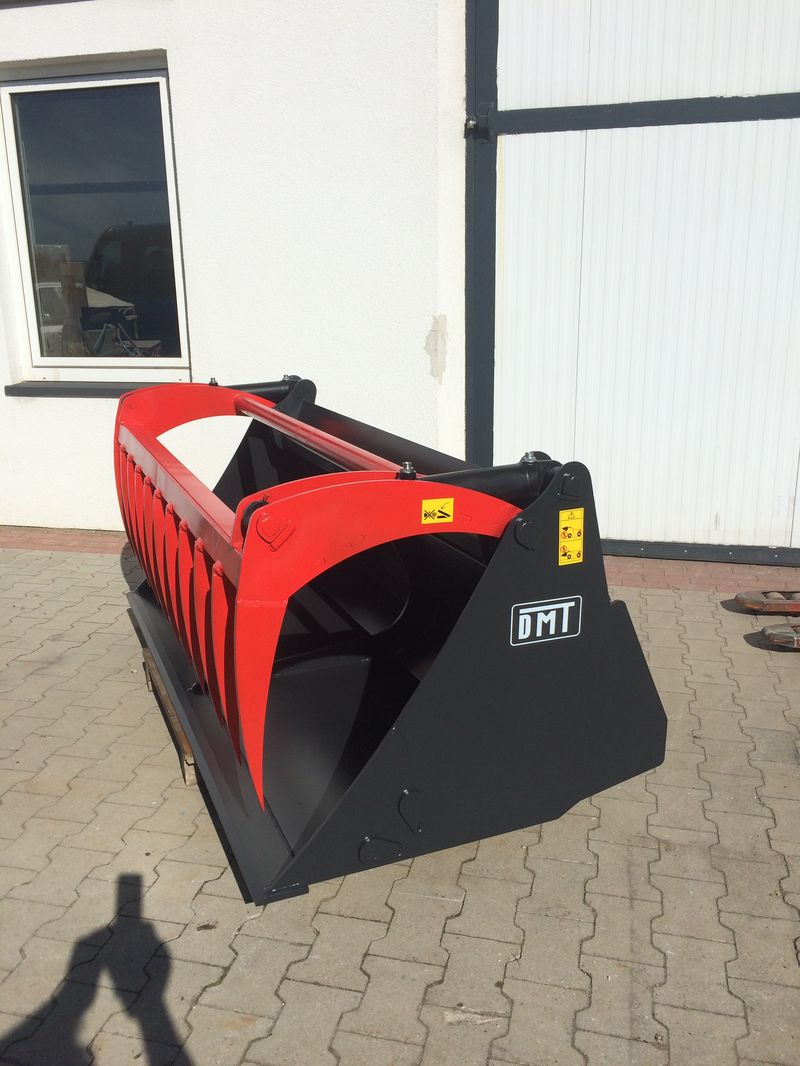

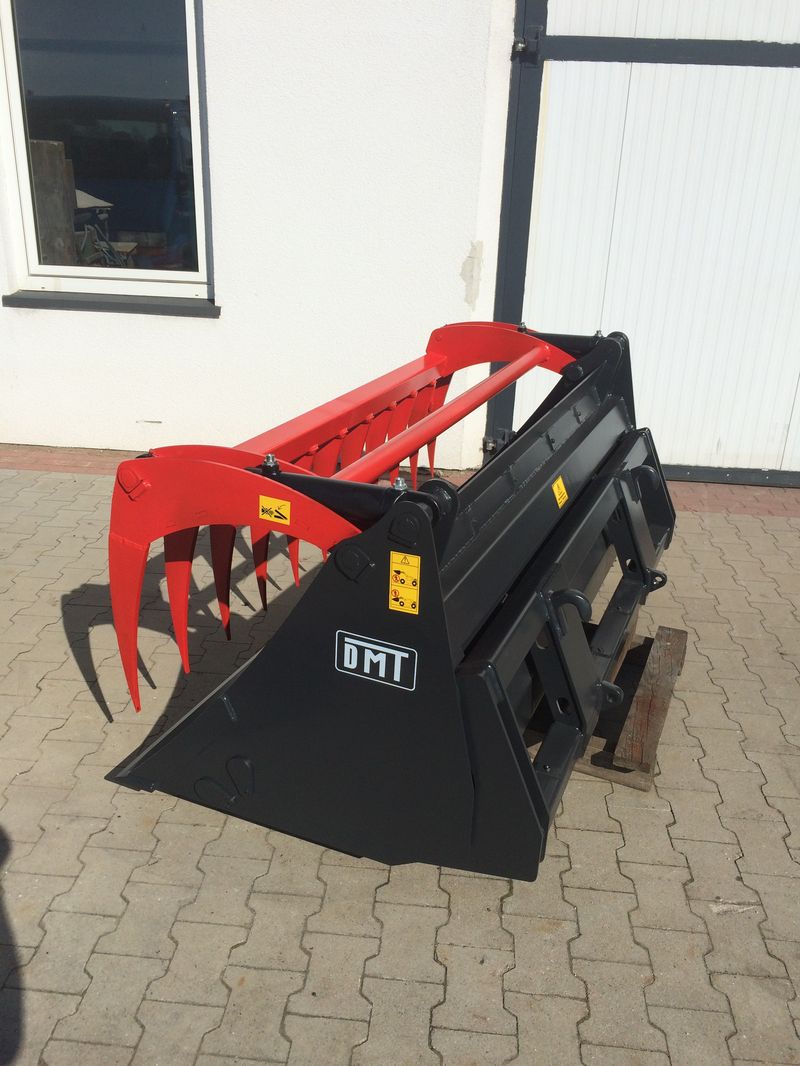

Hightip bucket with Upper grab Typ-SP
Hochkippchaufel mit Oberzange Typ-SP
Hochkippschaufel mit Oberzange Typ - SP.pdf
Basic Equipment:
- Ready to mount with quick change connection Euronorm
- For grained goods with aweight upto 1000kg/cbm
- Bucket hight:750mm Bucket depth:870mm
- Opened width approx:1250mm
- High wear resistant steel scraping rail 110X16mm 500HB
- Stable concave sidewalls securely closed steelplating 500HB
- Tipping angle approx:100 degrees
- Hight gain approx:900mm
- Standard Colours:
| Artical Nbr. |
Width (Inside) |
Capacity | Weight | |||
| 50036 |
1400mm |
0,85 / cbm |
400 kg |
|||
| 50037 | 1800mm |
0,75 / cbm |
490 kg |
|||
| 50038 | 1800mm |
1,05 / cbm |
490 kg |
|||
| 50039 | 2000mm |
1,20 / cbm |
520 kg | |||
|
50040 |
2200mm |
1,30 / cbm |
550 kg |
|||
|
50041 |
2400mm |
1,35 / cbm |
580 kg |
|||
| Artical Nbr. | Extras |
| 51018 | Quick change mounting for wheel and mini-loader |
| 51019 | Reversable blade 150X16mm from500HB steel Price per Meter! |
| 51020 | Reversing valve 12V with Kable(without Switch) |
| 51021 | Upper grab with screw mounted claws. |
All rights reserved. Technical changes and errors can occu.
